“Dainty as a Dragonfly and Dangerous as a Rapier”
– From Sunburst: The Rise of Japanese Naval Air Power, 1909-1941 by Mark R. Peatie
Few American fighter pilots operating alone survived a turning, twisting, close-in dogfight against a skilled Japanese pilot flying a Mitsubishi A6M Zero during World War II. Innovative tactics developed by U.S. Navy Commander John S. “Jimmy” Thach in 1942 helped American pilots regain an advantage, but the Zero remained a formidable adversary until the conflict ended. The Japanese official designation for the A6m Fighter Aircraft was Rei Shiki Sento Ki (Type 0 Fighter). Type 0 referred to the year 2600 in the imperial calendar (corresponding to the Julian calendar year 1940) when production of the Zero fighters commenced during the emperor’s reign. Pilots commonly referred to it as the Zero, even after the official Allied codename ‘Zeke’ was assigned in 1942. This article explores the design principles that allowed the Zero to maintain its status as one of the world’s most maneuverable fighters throughout the war.
Designing the A6M Fighter for Lightweight Superiority
Chief designer Jiro Horikoshi assembled a team in 1937 with two primary objectives for the new fighter aircraft for the Imperial Japanese Navy: maximize maneuverability and achieve sufficient range to escort Japanese bombers to distant targets in China and back. The Navy’s requirements were based on operations against Chinese objectives during the Second Sino-Japanese War, which began in July 1937. When Horikoshi and his team commenced work in October, they recognized that minimizing the fighter’s weight would critically benefit both maneuverability and range. This focus on lightness was a hallmark of wwii japanese fighter aircraft design.

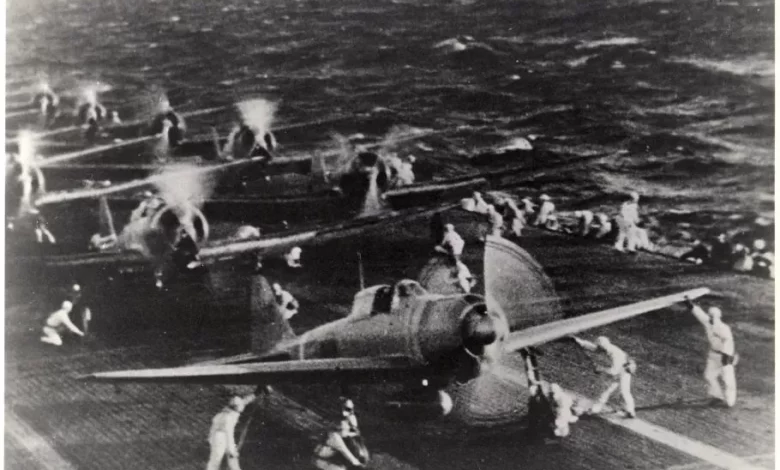

Mitsubishi A6M2 Zero fighter aircraft on an aircraft carrier deck preparing for the Pearl Harbor attack.
The second wave of Japanese fighters and bombers prepares for launch against Pearl Harbor on December 7, 1941. The aircraft visible on the deck in the foreground is a Mitsubishi A6M2 Zero fighter.
Horikoshi’s team meticulously engineered lightness into the Zero’s airframe by focusing on numerous small details. As described in a 1945 article about the Zero in Aviation magazine, “Nothing has been spared to keep weight down, neither excessive man-hours to manufacture complex units nor increasing maintenance difficulties for ground crews.” A prime example is the bracket supporting the aileron control tube, crafted from sheet aluminum pierced with large lightening holes and riveted together. This subassembly could have been produced more simply using fewer, larger metal pieces, but at the expense of added weight. Workers incorporated lightening holes into many parts. In certain areas, they substituted plywood for aluminum or steel as backing to reinforce the metal canopy frame and the false spar supporting the ailerons and flaps within the wings.
For heavier solid components of the airframe, the team employed “extra super duralumin,” an alloy developed in 1935 by Sumitomo Metal. By incorporating zinc with aluminum, metallurgists created a strong, lightweight metal with good fatigue resistance. Horikoshi utilized this material for solid parts like the two main wing spars, which provide structural bracing for the wing akin to a ship’s keel bracing. The Alcoa company introduced a similar aluminum alloy known as “7075” in 1943.
Aircraft construction involves subassemblies such as wings, fuselage, tail, engine, and landing gear, which are manufactured separately before being joined during final assembly. The fittings used to attach the wings and fuselage are typically strong and heavy. To reduce the size and weight of these parts, Horikoshi’s team permanently joined the wings to the Zero’s fuselage. They also designed the aft fuselage, including the tail, to mount more easily to the forward fuselage at a point just behind the cockpit. Each wing section housed the guns, landing gear, and fuel tanks, making the wings significantly heavier than the tail. Consequently, the fittings required to join the tail could be smaller and lighter as they only needed to support the tail’s weight. The gross weight of the A6M2 Zero (5,555 lb.) was substantially less than its primary adversary in spring 1942, the Grumman F4F-4 Wildcat (7,426 lb.), highlighting the Zero’s weight advantage over early us fighter aircraft of ww2.
Detailed view of the cockpit interior of a Mitsubishi A6M5 Reisen Zero fighter aircraft.
The cockpit of the Museum’s Mitsubishi A6M5 Reisen (Zero Fighter) Model 52 ZEKE.
Enhancing A6M Fighter Aircraft Maneuverability
Positioning the engine close to the cockpit not only contributed to weight savings but also significantly enhanced the Zero’s maneuverability. The aircraft’s centers of gravity and aerodynamic center of lift are located near the cockpit, acting as a fulcrum upon which the empennage (tail section) functions as a lever. Keeping the engine close to this fulcrum allowed for a shorter aft fuselage, further reducing weight. Despite the shorter tail, the elevator retained sufficient leverage to enable the Zero to execute tight turns and loops when the pilot pulled back on the stick.
Wing loading, defined as the weight supported by each square foot of an aircraft’s wing during level flight, is another crucial factor affecting maneuverability. Generally, lower wing loading translates to quicker maneuvering because there is less inertia to overcome when the pilot operates the controls to induce pitch, roll, or yaw. At 24.3 lb/ft², the A6M2 Zero exhibited a lower wing loading compared to the Grumman F4F-4 Wildcat at 28.6 lb/ft². The Zero design team also utilized an engine producing approximately 300 horsepower less than the Pratt & Whitney R-1840 Twin Wasp powering the F4F-4 Wildcat. While newer American fighters eventually boasted more than double the Zero’s horsepower, leading to a commensurate increase in wing loading and overall performance, the early Zero’s design provided a distinct maneuverability edge.
Mitsubishi A6M2 Zero fighter aircraft in flight, showing the engine cowl near the wing leading edge.
The Zero’s engine is mounted close to the wing leading edge in this photograph of the A6M2 Zero recovered from Akutan Island in the Aleutians island chain by U. S. Navy salvage specialists in July 1942.
American pilots learned to avoid close-in dogfights with the Zero unless they held a clear advantage in height or speed. When attacking, they employed “boom and zoom” tactics: making a single high-speed pass, hopefully damaging the Zero, and then using their speed or momentum to quickly exit the engagement area. Once out of the Zero’s effective range, they would regain their altitude or speed advantage and, if necessary and possible, conduct another attack pass, always prioritizing speed and altitude over sustained turning engagements. These tactics were developed specifically to counter the superior low-speed maneuverability of the mitsubishi a6m zero fighter aircraft.
In conclusion, the Mitsubishi A6M Zero’s exceptional maneuverability was a direct result of a deliberate design philosophy focused on minimizing weight and optimizing the aircraft’s physical layout. Through innovative use of materials like extra super duralumin, meticulous detail in construction to reduce weight, and strategic placement of the engine and fuselage components, the Zero achieved low wing loading and responsiveness that made it a formidable opponent in the early stages of World War II. Its agility compelled Allied forces to develop new tactics to overcome its strengths, cementing the A6m Fighter Aircraft’s legacy as a pivotal and highly capable design of its era.
