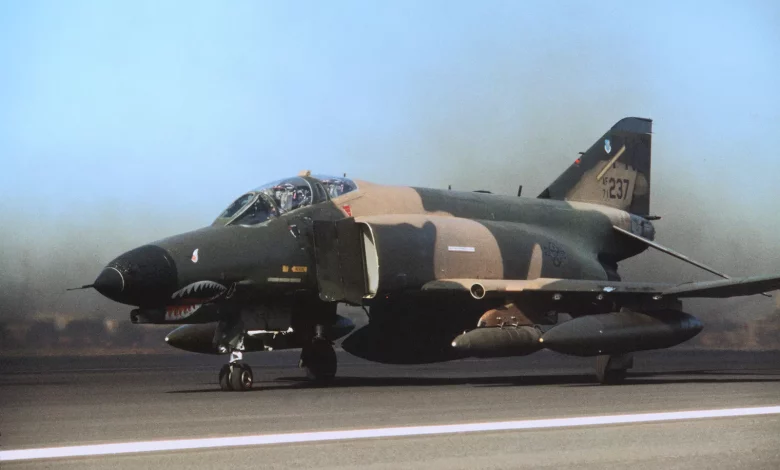

In the mid-1960s, while visionaries were conceptualizing smaller, more agile fighter jets that would eventually lead to aircraft like the celebrated F-16, the United States Navy was concurrently developing and refining what would become the most prolifically produced supersonic fighter in American history: the F-4 Phantom II. This formidable aircraft, known for its size, speed, and robust build, was far from sleek or understated. Regardless of differing opinions on its aesthetics, this highly capable and versatile F4 Fighter Aircraft, serving as a fighter, bomber, and interceptor, earned a fearsome reputation during the Vietnam era. Its effectiveness was such that it enjoyed an extraordinary 23-year production run and remarkably, continues to be operated by several military forces globally even today.
We’ll delve into the history and characteristics of the F-4 Phantom II, exploring the factors that contributed to its success alongside the challenges it faced.
F-4 Phantom II fighter jet sitting on an aircraft carrier deck
Adapting to Evolving Needs: The F-4 Phantom’s Complex Development Path
For aerospace companies like McDonnell, securing government contracts is often paramount to survival. In 1952, with a lack of new aircraft competitions on the horizon, McDonnell faced the prospect of idle engineers and dormant production lines. To generate business, the firm conducted internal studies and identified a significant need within the US Navy for a new type of aircraft: an attack fighter. This led McDonnell, starting in 1953, to begin modifying and enhancing its existing single-engine, carrier-based fighter, the F3H Demon, with the goal of improving its capabilities, range, and weapon options. The revised concept was proposed to the Navy.
McDonnell explored various designs, including both single and dual-engine configurations and one or two-seat cockpits. Their concept for a potentially “modular fighter” was presented to the Navy in September 1953. The Navy expressed sufficient interest to request a full-scale mockup but ultimately concluded that its requirements for a supersonic fighter were already met by upcoming aircraft like the Grumman F-9 and Vought F-8.
Undeterred, the McDonnell team returned to the drawing board. They reworked their design into a single-seat, all-weather fighter-bomber, notably incorporating 11 external hardpoints for ordnance. Prospects improved significantly when, on October 18, 1954, the US Navy issued a letter of intent for the development of two prototypes, then designated YAH-1. However, just seven months later, on May 26, 1955, Navy representatives visited McDonnell’s offices bearing what they described as “Great news!” – a completely new set of requirements. This time, the Navy needed an all-weather, fleet defense interceptor, necessitating a second seat for a dedicated radar operator.
It’s safe to assume this sudden shift caused considerable frustration among the McDonnell design team. Nevertheless, within two months, the Navy had ordered two XF4H-1 test aircraft and five YF4H-1 pre-production examples. This signaled clearly to McDonnell that they were on the verge of developing something significant, potentially bringing substantial revenue to the company and a highly effective aircraft to the military.
Development proceeded, and the new Phantom prototype made its maiden flight on May 27, 1958. The initial results were so promising that the F-4 testbeds were soon compared to and competed against the Navy’s single-seat XF-8 Crusader III test aircraft. Recognizing that the pilot’s workload for the intended fleet defense mission would be too demanding for a single person, the two-seat F4 Fighter Aircraft design was selected as the Navy’s new Fleet Air Defense fighter/interceptor. The first production F-4s were delivered in 1960, and the first operational squadron, VF-74, began flying the Phantom II in 1961. This emphasis on separating flying duties from radar and weapons system operation also influenced the design of later aircraft like the F-14 Tomcat and two-seat variants of the F-15 Eagle.
McDonnell had successfully navigated the changing requirements. Just 31 months after its first flight, the F-4 Phantom (initially considered for the name “Satan,” though cooler heads prevailed) emerged as the US Navy’s fastest, highest-flying, and longest-range fighter. Its remarkable versatility and effectiveness ensured its production for over two decades across multiple variants and in greater numbers than any other US supersonic fighter in history, with a total of 5,195 examples built (5,057 by McDonnell Douglas in St. Louis and 138 under license in Japan by Mitsubishi Heavy Industries).
Three F-4 Phantom II fighter jets flying in formation
Breaking Records: The F-4 Phantom II’s Early Demonstrations of Power
American aircraft design often prioritizes sheer power and speed, sometimes over handling finesse, and the F-4 Phantom II perfectly embodies this philosophy. Powered by twin General Electric J79 engines, the F-4 could reach a top speed of Mach 2.23 (1,473 mph) at 40,000 feet in level flight. Throughout its service life, this f4 fighter aircraft shattered numerous performance benchmarks, setting a total of 16 speed, altitude, and time-to-climb records. As Defense Daily once put it, the F-4 was an example of “the triumph of thrust over aerodynamics.”
One of its earliest record-breaking feats occurred on December 6, 1959, when a Phantom executed a “zoom climb,” reaching a world record altitude of 98,557 feet. In September 1960, an F-4 averaged an astounding 1,390.24 mph over a 62-mile course, significantly surpassing the previous record. A further demonstration of its speed came in 1961, when an F-4 established a new world speed record of 1,606 mph (2,585 kph) over a 20-mile circuit. The same year, utilizing multiple aerial refueling tankers, a Phantom flew across the continental United States in a mere 2 hours and 47 minutes, averaging over 869 mph, including the time taken for refueling. When the throttle was advanced in an F-4, it delivered an exhilarating, high-speed experience. Its impressive performance contributed to its reputation as one of the most powerful fighter aircraft in the world for its era.
F-4 Phantom II performing an aerial refueling maneuver
The McNamara Era and the Universal Fighter Concept
Secretary of Defense Robert McNamara championed the concept of a single fighter aircraft design that could be adapted with minimal modifications for use by the US Navy, Air Force, and Marine Corps. This approach aimed to achieve significant cost savings, streamline training, improve interoperability between branches, and enable the production of larger numbers of aircraft in response to the perceived growing threat from the USSR and China. Fortunately, the F-4 proved remarkably well-suited to this demanding requirement. (McNamara also mandated a standardized nomenclature system, ending the confusing practice of each branch having separate designations for the same aircraft. Hence, the aircraft became universally known as the F-4 across all three services).
By the conclusion of the Vietnam War, the F-4 had become the primary multi-role combat jet aircraft for the USAF. Phantoms were credited with downing more enemy aircraft than any other fighter type during the conflict. Consequently, the majority of F-4s produced were destined for the Air Force (2,874 Phantoms went to the USAF, 1,264 to the Navy and Marine Corps, and the remainder were supplied to 11 foreign militaries).
Throughout its extensive service life, the f4 fighter aircraft received significant upgrades to its engines, avionics, and weapons systems. Notably, an M61 Vulcan rotary cannon was added to satisfy pilots’ requests for the ability to engage in close-range “dogfights” using guns. Beyond its advanced AIM-4 Falcon, AIM-7 Sparrow, and AIM-9 Sidewinder missiles, the F-4 boasted the capability to carry up to 18,650 pounds (8,480 kg) of bombs, rockets, and even nuclear weapons on its nine external hardpoints. It was also equipped with cutting-edge Electronic Warfare tools for its time, including the pioneering “look down/shoot down” capability in the F-4J variant, facilitated by its Westinghouse AN/AWG-10 Fire Control System. The Phantom was also the first fighter to incorporate the still-classified APX-80 “Combat Tree” targeting system. According to some sources, this system enabled the Radar Intercept Officer (RIO) – today referred to as weapons system officers (WSOs) – to utilize enemy aircraft’s own identification transponders to acquire targets for long-range air-to-air missile attacks.
F-4s saw extensive combat deployment, starting in Vietnam and continuing through Operation Desert Storm. Some Phantoms remain in active service with allied nations today. Furthermore, both of the US military’s premier flight demonstration teams, the Navy’s Blue Angels and the Air Force’s Thunderbirds, proudly flew the Phantom II from 1969 to 1973, showcasing its impressive performance envelope. When discussing modern fighter aircraft of the world, the F-4’s legacy as a transitional and foundational design is often highlighted.
The Cost of a Legend: How Much Did an F-4 Phantom Cost?
Considering its advanced capabilities and prolific production, how much did an F-4 Phantom cost during its operational life? The unit flyaway cost for the F-4E variant in 1965 was approximately $2.4 million. Adjusting for inflation, that’s roughly $22 million in today’s currency. When compared to the cost of contemporary fifth-generation fighters like the F-35, which can cost up to $135 million per copy, the exceptional overall value, versatility, and combat effectiveness of the Phantom become even more apparent.
Remarkably, an F-4 Phantom was even offered for sale to civilians in 2020, listed at $3.25 million. For aviation enthusiasts or collectors, many would consider that a considerable bargain for such an iconic piece of aviation history.
The Phantom’s Distinctive Design: Why It Looks So Badass
While the F-4 has been subject to various unflattering nicknames such as “ugly,” “the flying anvil,” “the flying brick,” “the iron pig,” “double ugly,” and even likened to a “mean rat,” its design has, in the eyes of many, aged remarkably well compared to some of its contemporaries. To many aviation aficionados, it stands as one of the most visually striking jet fighters ever produced by the United States, despite its substantial dimensions – a 58-foot length and a 38-foot wingspan.
Its upswept outer wing sections feature a distinctive dihedral angle, somewhat reminiscent of the F-4U Corsair’s “gull-wing” design from WWII. Meanwhile, its tall, angular vertical stabilizer and the sharply downswept horizontal stabilizers (anhedral) lend it an appearance that wouldn’t be out of place in a science fiction series like Battlestar Galactica. Interestingly, the 12-degree upsweep of the wingtips was an ingenious solution derived from wind-tunnel testing. Initial tests indicated that a 5-degree dihedral across the entire wing was necessary for stability. Instead of undergoing a costly redesign of the central fuselage section, a clever McDonnell engineer realized that by simply upsweeping the wingtips by 12 degrees, the overall average dihedral of the wing would approximate the required 5 degrees. This practical solution worked perfectly.
The streamlined, aggressive-looking canopy, the powerful impression of “two huge engines with some wings added,” the “dog-toothed” leading edges of the wings with their upswept tips intersecting visually with the sharply angled rear stabilizers – these elements combine to create an undeniably imposing and “badass” aesthetic. The entire design language conveys speed, sharp angles, and a sense of lethal capability.
A close-up view of the cockpit canopy and front section of an F-4 Phantom II
Navigating the Challenges: Problems Faced by the F-4 Phantom
Given its rapid development cycle, it was almost inevitable that the f4 fighter aircraft would encounter some initial challenges and “teething issues.” Early production aircraft experienced problems with fuel leaks in their internal wing tanks, often requiring re-sealing after every flight. Issues also arose with aileron control cylinders, electrical connectors, and engine compartment fires. Furthermore, 85 F-4s developed cracks in outer wing ribs and stringers, potentially due to the stress incurred during dogfights with smaller, more maneuverable fighters – a role for which the F-4 was not originally optimized.
A notable characteristic, or rather, a drawback, of the F-4’s powerful General Electric J79 engines was the significant smoke trail they produced. As Smithsonian Magazine famously put it, the engines “advertised its arrival with a smoke trail visible 25 miles away.” This was a non-trivial disadvantage, leading to another of the Phantom’s nicknames: “Old Smokey.” Fortunately, this smoke trail was often within the effective kill range of the F-4’s radar system and guided air-to-air missiles, meaning the aircraft could potentially engage a target before being visually detected. Engineering a solution to this smoky exhaust would take nearly two decades.
The advanced avionics systems, while groundbreaking, were not without their issues either. Randy Raines, a former Marine Corps F-4 RIO, recounted to Aviation Geek Club: “They were always broken. When you reported in from a flight it was ‘up & up’ if the plane and the avionics were working. ‘Up & down’ if the plane was OK but the avionics was down. I can probably count on two hands the number of times I called in ‘up & up.’ I was in four squadrons over my career and everyone of them had all the planes grounded until something could be fixed.”
Raines also highlighted another potentially dangerous flaw: “Designed as an interceptor, the structure had a hard time handling the high G’s of 1V1 combat. Then there was the bleed air system (which I understand the USAF shut down) that bled hot exhaust gas over the leading and trailing edge of the wing when the flaps were down. That system was a continuous problem. Picture hot exhaust leaking next to a wing full of JP-5 [jet fuel]. We came pretty close to losing a plane because the crew didn’t recognize the problem and didn’t shut the valve controlling the system off.”
Despite these known flaws, the F-4 proved to be a capable and remarkably reliable aircraft in combat situations, earning the affection of many pilots and RIOs. Raines concluded, “Having said all that, I loved the F-4. It was a great plane that always brought you home.” Former Phantom pilot John Cheshire echoed this sentiment, stating, “It was an easy fighter to fly. However, because of its wide turning radius, it took some extra instruction on how to defeat tight-turning enemy aircraft. That added instruction worked.”
The United States military retired its last F-4s from active service in 1996, although the aircraft continued to serve much longer in countries like Germany and others. Some of the retired US Phantoms were repurposed as remote-piloted drones for testing air-to-air and surface-to-air missile systems – a rather unsung final role for one of the most significant aircraft ever adopted by the US military. As John Cheshire affectionately summarized, “Of all the many aircraft and fighters I have flown, the F-4 Phantom will always be my favorite.”
Today, some F-4s continue operational service in the air forces of Japan, South Korea, Greece, and Turkey. This remarkable, sometimes controversial, but undeniably excellent f4 fighter aircraft continues to hold a significant place in aviation history, and hopefully, its operational life is far from over.
